Apraksts

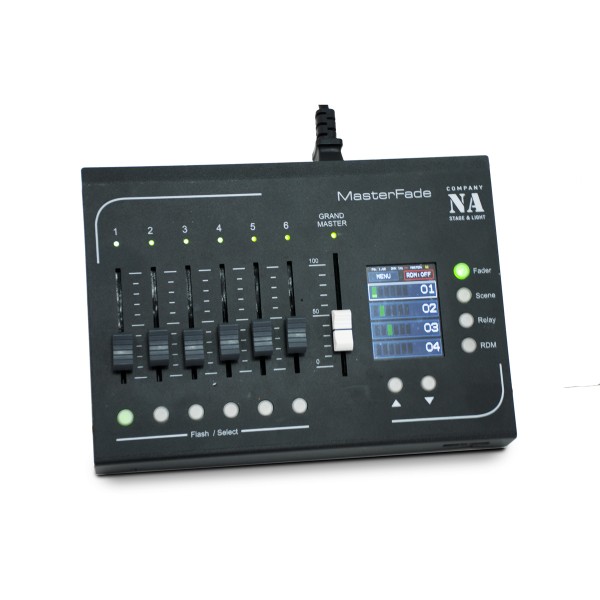

MasterFade is unique lighting system control device for small aplications. It combines
6 fader live lighting console with DMX recorder. The unit operates with 1
DMX universe — 512 channels. The user has a possibility to patch any DMX channel
values to 6 faders or to record any memories onto these faders with multiple pages,
where functionality of faders is controlled from touchscreen. Another option is a
possibility to record static or dynamic scenes, from other DMX source (console),
controlled by four buttons and touchscreen as well. There is guaranteed dynamic
record length 10* hours in total for all memories. MasterFade merges incoming
DMX signal and its own recorded and played back signal by predefined rule: HTP
(Highest Takes Precedence). That means that the final attribute value will be the
highest input value.
Additionally, this controller supports RDM protocol. This gives ability to remotely
change fixture DMX adress, DMX mode, check lamp settings, view fixtures sensor
statuses, locate the decive and reset it by using RDM protocol.
*Actual record length depends on the capacity of the used SD card.

Technical specifications:
DMX universes: 1
DMX inputs: 1
DMX outputs: 1
Dynamic memories: 8 pages of
6 memories
Static memories: 32
Touchscreen: 3’’
Record length, hours: 10
Memory media: SD card
Operating tºC: -20º – +40º
AC power: 100-240V, 50/60Hz
Width, mm: 220
Height, mm: 41
Depth, mm: 178
Weight, kg: 1,4
