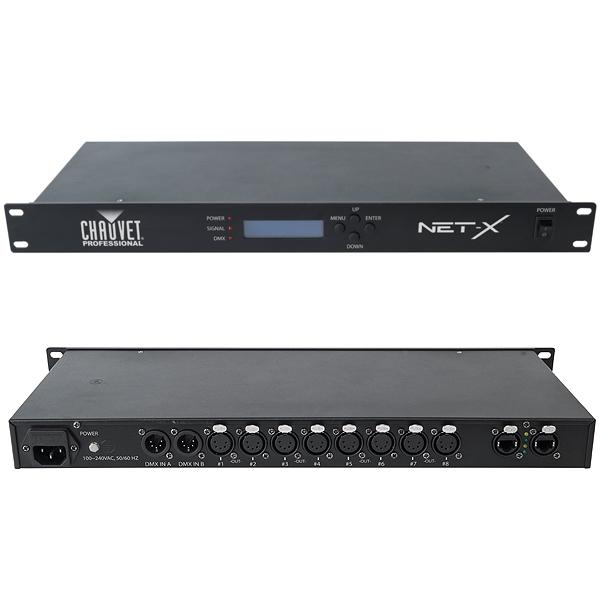

SPECIFICATIONS
CONSTRUCTION / PHYSICAL
- Dimensions: 19 x 6.6 x 1.8 in (483 x 168 x 45 mm)
- Weight: 4.4 lb (2.0 kg)
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U
CONNECTIONS
- Power Connection: Edison (Local) plug to IEC
- Power Input: Neutrik powerCON
- Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
- Device Data Outputs: 5-pin XLR (8 total)
- Device Date Throughputs: Neutrik etherCON (1 total)
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: Art-Net, DMX
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 30 W, 0.25 A @ 120 V, 60 Hz
- Power and Current: 30 W, 0.14 A @ 208 V, 60 Hz
- Power and Current: 30 W, 0.13 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE
- IP Rating: IP20, dry location
